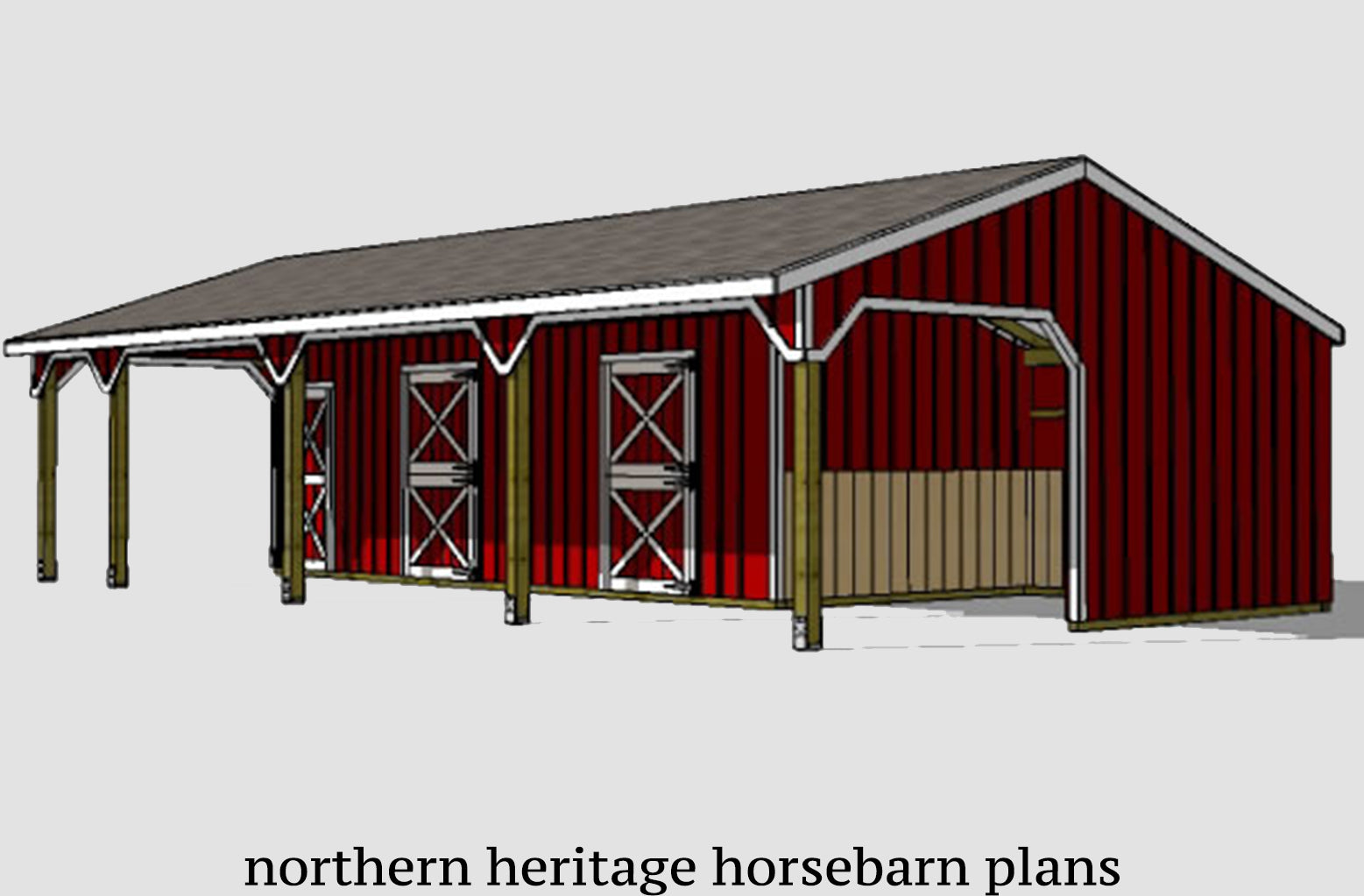

22x42 Horse Barn Plan with added tack room & attached Run In Barn/optional storage- 3 stall
22x42 Horse Barn Plan with added tack room and attached run in barn/optional storage-3 stall- Includes:
Post and Beam Construction - Plans include common post and beam construction
Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 2x6 pine boards
Door Plans - 4x8 dutch door plans included
Foundation - 6x6 wood skids
Floor - Optional existing ground or poured concrete slab
Wall Framing - Posts are 4x4
Wall Height - Rear 8', Front 8' -9"
Window - None included. Easily added to any wall if desired
Siding - Battens are 1x2, and 1x10 boards
Roof - Template included. Framed using 2x4's for the rafters and sheeted with 7/16" OSB
Roof Pitch and Overhang- 4/12 pitch. 2" overhang on sides, 6" on front and 6" on the back.
Roofing Materials - Corrugated metal roofing or asphalt shingles
Trim - Roof Eves and Facia are 1x4 and 1x6
Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.
FREE How to book - Helpful instructions specific to Barn Building
FREE Materials List - Use this materials list to get cost estimates on building your barn
Instant Download Now Option - Select Option at Checkout
