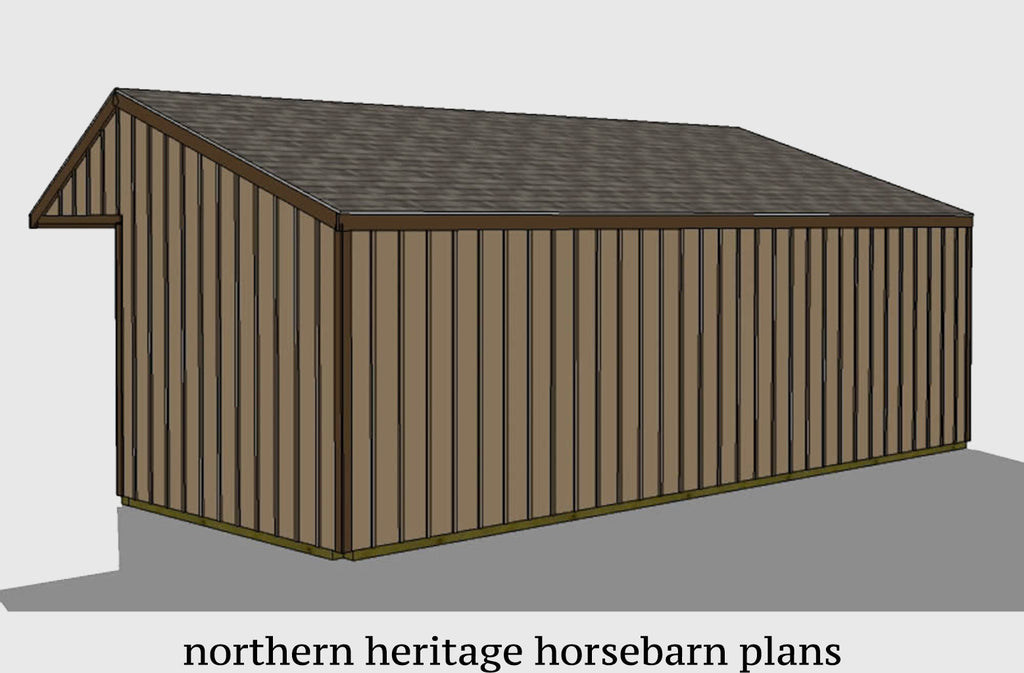

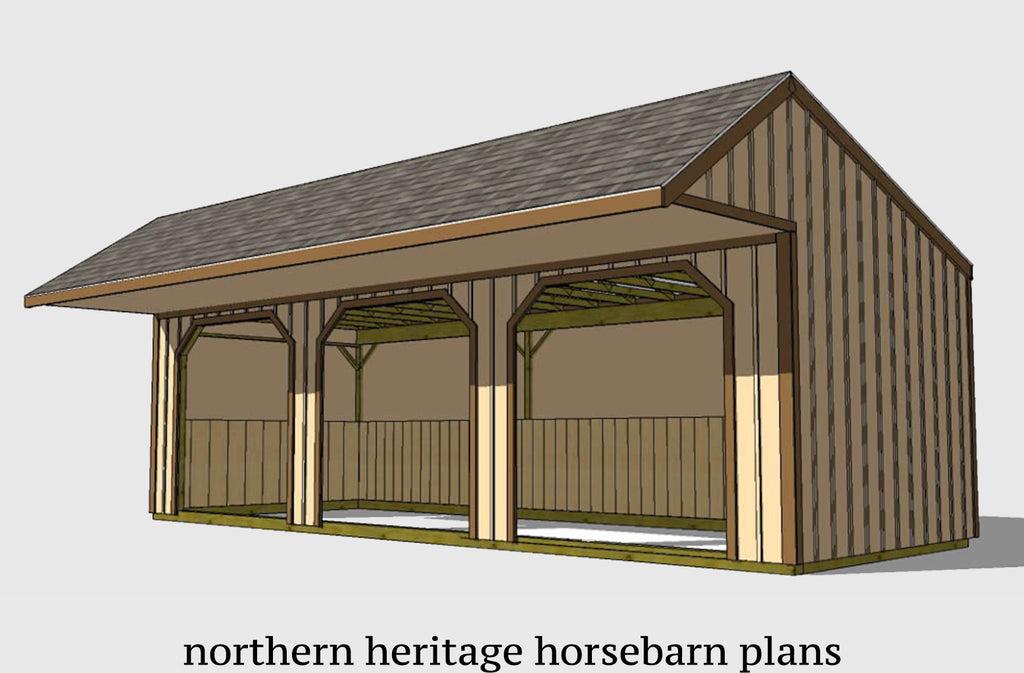

12x32 Run in/loafing Horse Barn Plan with added cantilever
12x32 Run in/loafing Horse Barn Plans with added cantilever Includes:
Post and Beam Construction - Plans include common post and beam construction
Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 2x6 pineboards
Door Plans - No door is included
Foundation - Built on 6x6 wood skids. Allows the barn to be moved. Build-able on the direct ground or prepared gravel area.
Floor - Optional existing ground or poured concrete slab
Wall Framing - Posts are 4x4
Wall Height - Front and rear 9' 3"
Window - None included. Easily added to any wall if desired
Siding - Battens are 1x2, and 4x8 textured plywood
Roof - Template included. Framed using 2x4's for the rafters and sheeted with 1/2" OSB
Roof Pitch and Overhang- 8/12 pitch on the front and 4/12 over the stall. 2" overhang on sides, 6' on front and 2" on the back.
Roofing Materials - Corrugated metal roofing or asphalt shingles
Trim - Roof Eves and Facia are 1x4 and 1x6
Tow Hooks - 1/4" x 2" x 24" tow hooks and corner braces
Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.
FREE How to book - Helpful instructions specific to Barn Building
FREE Materials List - Use this materials list to get cost estimates on building your barn
Instant Download Now Option - Select Option at Checkout
