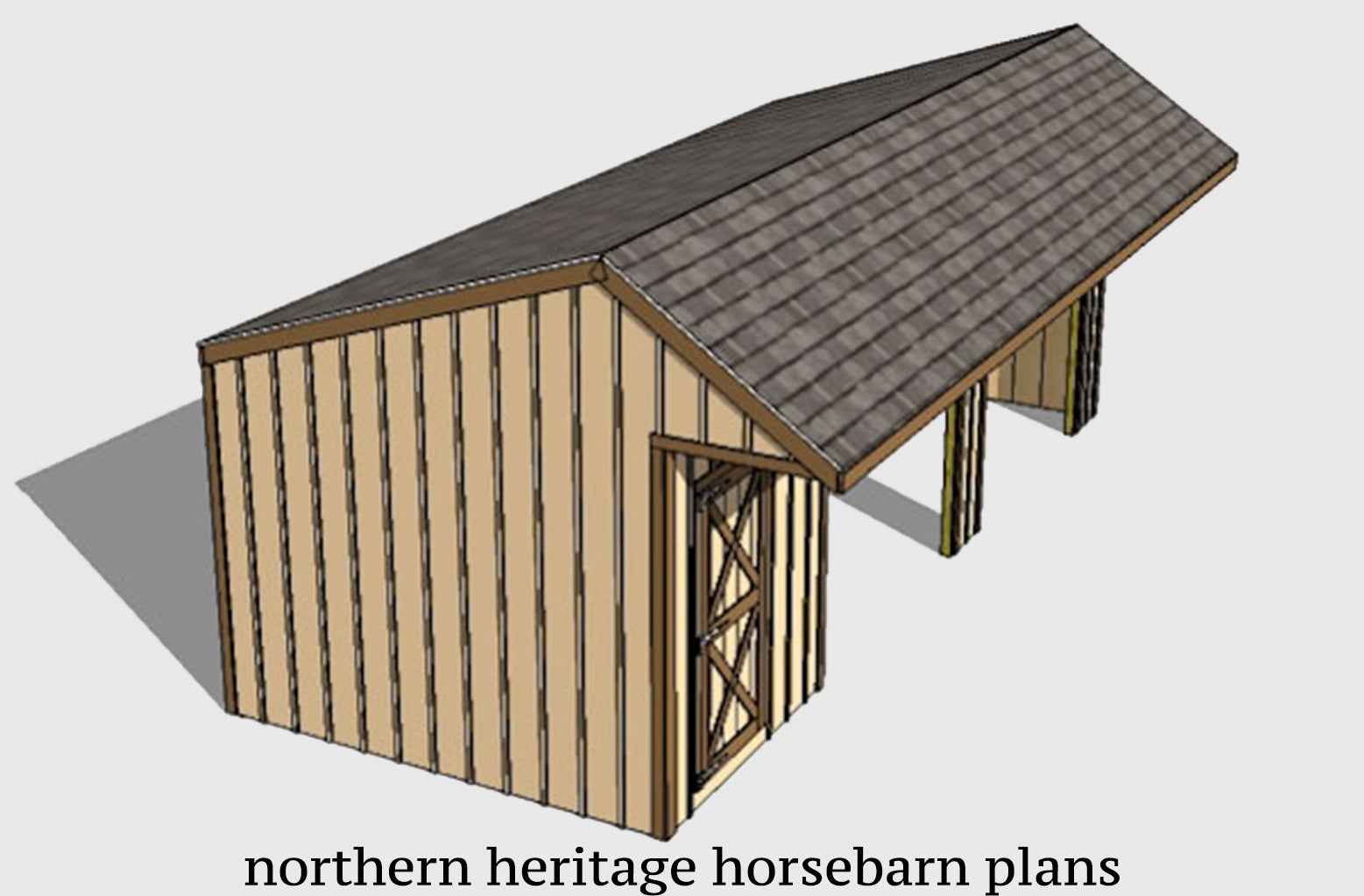

12x30 Run in/loafing Horse Barn Plan with added tack room bonus and cantilever

$40.99
SKU: nhhb12x30-RICTR

12x30 Run in/loafing Horse Barn Plan with added tack room bonus and cantilever Includes:

Post and Beam Construction - Plans include common post and beam construction

Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 1x10 pineboards

Door Plans - Door plan for tack room is included

Foundation - Built on 12” round concrete piers or direct bury post

Floor - Optional existing ground or poured concrete slab.

Wall Framing - Posts are 4x4

Wall Height - 9’ 3" Front and Rear is 9’ 3”

Window - None included. Easily added to any wall if desired

Siding - Textured Plywood 4x8, 1x10 boards

Roof - Template included. Framed using 2x8's for the rafters and sheeted with 7/16" OSB

Roof Pitch and Overhang- Front - 8/12 pitch for the front and 4/14 pitch over the stall, 2” overhang on sides and 2” on back. 6' front overhang

Roofing Materials - Corrugated metal roofing or asphalt shingles

Trim - 1x4 and 2x6 finished wood corners

Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.

FREE How to book - Helpful instructions specific to Barn Building

FREE Materials List - Use this materials list to get cost estimates on building your barn

Instant Download Now Option - Select Option at Checkout
