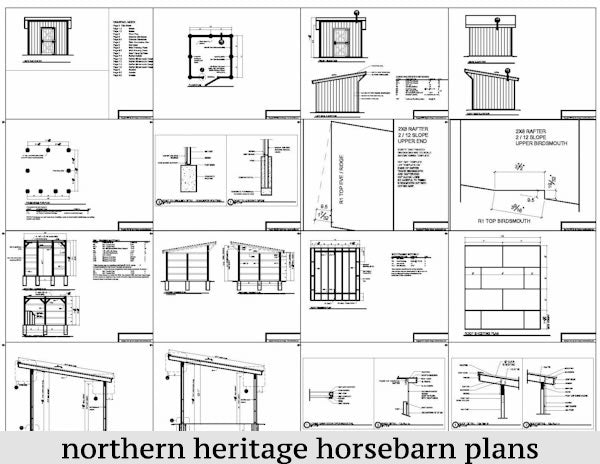

12x12 Horse Barn Plan
12x12 Horse Barn Plan Includes:
Post and Beam Construction - Plans include common post and beam construction
Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 2x6 pine boards
Door Plans - 4x8 dutch door plan included
Foundation - 6x6 wood skids
Floor - Optional existing ground or poured concrete slab
Wall Framing - Posts are 4x4
Wall Height - 9'3"
Window - None included. Easily added to any wall if desired
Siding - Battens are 1x2, and 1x10 boards
Roof - Template included. Framed using 2x4's for the rafters and sheeted with 1/2" OSB
Roof Pitch and Overhang- 4/12 pitch. 2" overhang on sides, 6" on front and 6" on the back.
Roofing Materials - Corrugated metal roofing or asphalt shingles
Trim - Roof Eves and Facia are 1x4 and 1x6
Tow Hooks- tow hook and corner braces - 1/4" x2" x24"
Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.
FREE How to book - Helpful instructions specific to Barn Building
FREE Materials List - Use this materials list to get cost estimates on building your barn
Instant Download Now Option - Select Option at Checkout
