10x20 Horse Barn Plan

$31.99
SKU: nhhb10x20 HBLT-WF

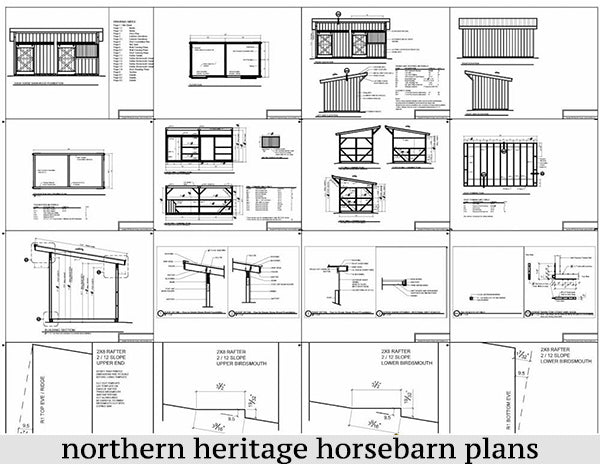

10x20 Horse Barn Plan-2 stall- Includes:

Post and Beam Construction - Plans include common post and beam construction

Oak Kick boards and Siding - Choice of 3/4" plywood,1x8 oak boards, or 2x6 pine boards

Door Plans - 3x7 tack room door and 4x7 dutch door plans included

Foundation - 6x6 wood skids

Floor - Optional existing ground or poured concrete slab

Wall Framing - Posts are 4x4

Wall Height - Rear 7'7", Front 8'6"

Window - None included. Easily added to any wall if desired

Siding - Battens are 1x2, and 4x8 sheet siding

Roof - Template included. Framed using 2x4's for the rafters and sheeted with 1/2" OSB

Roof Pitch and Overhang- 4/12 pitch. 2" overhang on sides, 18" on front and 6" on the back.

Roofing Materials - Corrugated metal roofing or asphalt shingles

Trim - Roof Eves and Facia are 1x4 and 1x6

Tow Hooks - 1/4"x2"x24"tow hooks and corner brace plan drawings included

Engineering - All design loads are drawn "typical". Specific modifications for local wind, soil conditions etc are made through a local engineer. Often required by the building dept.



FREE How to book - Helpful instructions specific to Barn Building

FREE Materials List - Use this materials list to get cost estimates on building your barn

Instant Download Now Option - Select Option at Checkout
